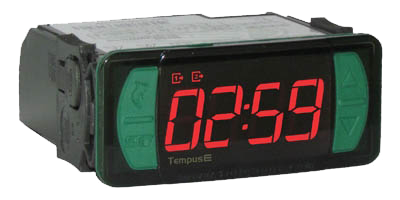

Full Gauge Tempus E- Programmable Digital Timer



Downloadable instructions:

Youtube video description: https://youtu.be/2P8_ZMTDhM0

*Prices exclude delivery

General Description

Full Gauge Tempus E is a multifunction, programmable timer suitable for many applications.

Multi-function device designed to operate as digital timer or counter. It includes three configurable and independent operating modes: event timer, cyclic timer or unit counter. The event timer mode offers three preset options and it is triggered through one of the controller's keys or an external switch connected on the digital input. The cyclic timer mode can operate with up to two outputs of control and include a delay option where both outputs will remain off. The counter mode include unit, batch and total counting options. Other salient feature include an internal audible alarm (buzzer) and an output that indicates the end of cycle/process and event totalizing, in addition to two digital inputs for external start/pause/count and stop/reset switches.

This product is CE, UL and NSF certified.

Evolution line products has a frontal IP-65 protection, Flatec key for easy access, four digits display and exclusive accessories* as the key programmer EasyProg and the protective case Ecase. * sold separately.

Full Gauge Tempus E has 2 output relays which can be switched by various methods:-
Timer
Cycle timer
Counter

Timing can be: Count up or Count down

Time units:-
Seconds and hundreths
Minutes and seconds
Hours and minutes

Remote operation is possible to ‘start/pause’ and ‘stop/reset’ the Full Gauge Tempus E, by use of 2 digital inputs.

Technical Specification

Power supply                                    115/230V +/- 10%
Mains frequency                                50Hz +/- 20%
2 x SPST Output Relay:
OUT1 contact rating                           16(12)A 250V
OUT2 contact rating                           10A 250V
Counter input                            NO/NC no voltage input
Operating temperature                        0/50 Deg.C
Overall dimension                               71 x 28 x 71 mm
